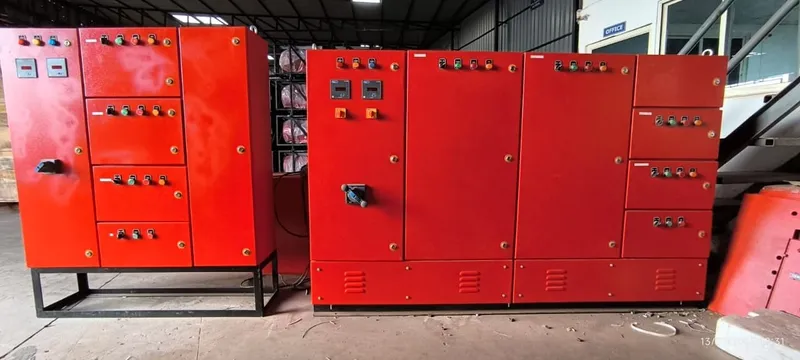

Udyog Engineering's advanced fire pump control panel range, designed specifically for fire protection systems in accordance with NFPA 20 requirements.

Intelligent control. Reliable protection.

Engineered for reliability, safety and continuous operation, Voltaris panels provide intelligent control, monitoring and protection for electric and diesel-driven fire pumps.

Control & operation

DOL, star-delta, soft starter & VFD starting options
Automatic engine starting with redundant battery banks
Pressure switch based automatic operation
Main electric & standby diesel pump interlocking

Indications & metering

RYB power ON indication
Pump ON / OFF / TRIP status
Phase failure & phase reversal indication
System trouble indication
Digital VAF metering
Pressure display monitoring

Protection features

Phase loss protection
Phase reversal protection
Phase imbalance protection
Thermal overload protection
Overcurrent protection
Short circuit protection

Voltaris Fire Pump Compartmental Floor Mounted Control Panel specifications
Specification	Value
Design standard	NFPA 20 fire pumps
Enclosure	Heavy-duty sheet steel, 1.6 mm to 2.0 mm (14–16 SWG)
Protection rating	IP32, IP45, IP54 or higher
Finish	Corrosion-resistant epoxy / powder-coated
Colours	Fire Red, PO Red, Light Grey (RAL 7032), White (RAL 7035)
Configuration	Floor-standing or wall-mounted
Operating voltage	415 V AC, 3-phase, 50 Hz
Busbars	Copper or aluminium
Short circuit rating	25 kA, 36 kA & 50 kA
Control voltage	110 V / 240 V AC or 24 V DC (diesel systems)

Ranges indicative — final selection per application and manufacturer datasheet.

Applications

Infrastructure Steel Industry Commercial & Residential

Features

NFPA 20 compliant design
Heavy-duty industrial construction
Automatic fire pump operation
Advanced protection & monitoring
Electric & diesel pump compatibility
Reliable performance in critical emergencies
