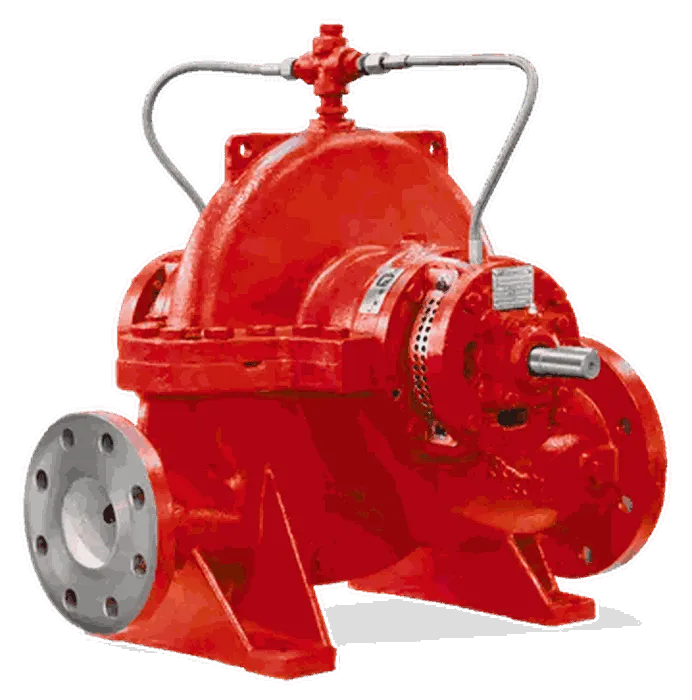

View detailsSplit Case Fire Pump
Flow 100–10,000 m³/hr · Head 10–150 m · 5–500 kW
High-efficiency centrifugal pumps designed for handling large volumes of water with minimal energy loss, for critical fire protection duty.
High flow. High reliability. Critical fire protection.
The split casing design enables easy maintenance without disturbing pipeline connections. Supplied in the OMEGA / GAMMA range.
Types
- Horizontal split case pumps
- Vertical split case pumps
- Double suction pumps
| Specification | Value |
|---|---|
| Flow range | 100 to 10,000 m³/hr |
| Head range | 10 to 150 m |
| Power range | 5 kW to 500 kW |
| Speed | 750 – 1800 RPM |
| Temperature | up to 140°C |
| Series | OMEGA / GAMMA |
Ranges indicative — final selection per application and manufacturer datasheet.
Applications
Features
- High flow capacity for fire demand
- Easy maintenance with split casing design
- Low vibration and noise operation
- Long operational life
