Ama-Porter
Vertical, monobloc pumpset, free flow impeller of two sizes, 1Ø and 3Ø motors with IP 68 protection, 1Ø motor with built-in thermal overload protection and float switch, bi-directional mechanical seal.
View detailsKSTP
Max. Discharge Up to 530 LPM Max. Head Up to 16 M

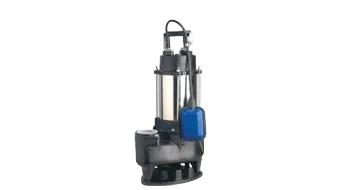

The SS Motor Body Sewage Submersible Pump, designed to handle wastewater and sewage, operates on a single phase. It exhibits durability and corrosion resistance, rendering it suitable for submerged operations.
SS Motor Body Sewage Submersible Pumps are designed for efficient and reliable handling of wastewater and sewage in demanding environments. Featuring a durable, corrosion-resistant stainless steel motor body, these pumps are suitable for continuous submerged operation. Available in 1.0 HP and 2.0 HP ratings with a single-phase power supply, they offer dependable performance for residential, commercial, and industrial applications. Equipped with an impeller manufactured from IS 210 Grade FG200 material, the pumps can handle solid particles up to 20 mm in size. Ideal for construction sites, hotels, restaurants, sewage treatment plants, and general wastewater drainage applications, these pumps provide a robust and practical pumping solution.
| Specification | Value |
|---|---|
| Range | Up to 3.0 HP (2.2 kW) |
| Rated Voltage | 220 V |
| Voltage Range | 160 – 250 V |
| Rated Frequency | 50 Hz |
| Max. Discharge | Up to 530 LPM |
| Max. Head | Up to 16 M |
| Pipe Size | 50 mm |
| Temp. of liquid pumped | 30 °C |
| Nominal Speed | 2800 RPM |
| Insulation Class | F Class |
| Solid Handling Size | 20 mm |
| Motor Body | Stainless Steel |
| Motor Base | Cast Iron FG 200 |
| Shaft | Stainless Steel |
| Mechanical Seal | SIC-SIC / Carbon-Ceramic |
| Impeller | Cast Iron FG 200 |
Ranges indicative — final selection per application and manufacturer datasheet.
