Ama-Porter
Vertical, monobloc pumpset, free flow impeller of two sizes, 1Ø and 3Ø motors with IP 68 protection, 1Ø motor with built-in thermal overload protection and float switch, bi-directional mechanical seal.

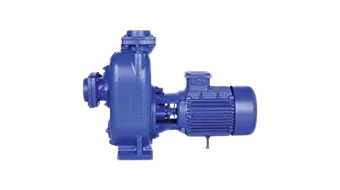

View detailsSP Bloc
Head up to 6 to 36 m
Horizontal self priming volute casing pumps, single stage with semi open impeller, in back pull out design. Monobloc, mono shaft design, hydraulics are assembled on extended motor shaft, suction lift up to 7 metres.
Horizontal self-priming volute casing pumps feature a single-stage design with a semi-open impeller, ensuring reliable performance in demanding fluid-handling applications. The back pull-out construction allows easy maintenance and servicing without disturbing the connected pipework. Designed with a monobloc, single-shaft configuration, the hydraulic assembly is mounted directly on the extended motor shaft for compact and efficient operation. With a self-priming capability and suction lift of up to 7 metres, these pumps are suitable for water transfer, drainage, irrigation, and industrial fluid-handling applications.
| Specification | Value |
|---|---|
| Head | 6 to 36 m |
| Capacity | up to 70 m3/hr |
| Power rating | 1 to 7.5 HP |
| MOC | Pump body C.I., Motor body C.I., Impeller C.I., SS, Bronze, Wear plate C.I., SS, Shaft SS 410 |
| Sealing | Gland packing or mechanical seal |
Ranges indicative — final selection per application and manufacturer datasheet.
Features
- Suitable for pumping muddy water, sewage, polluted liquids including solids etc.
- For de-watering at Basements, Trenches, Swimming pools and Construction sites.
- For handling liquid cargos from ship or plane.
- Useful in tiles and marble factories for handling waste liquids.
- For Salvage operations such as saving ship or cargo, fire fighting etc.
- Any application where priming and foot valve is to be avoided.
